Electronic controller

HT 43 series

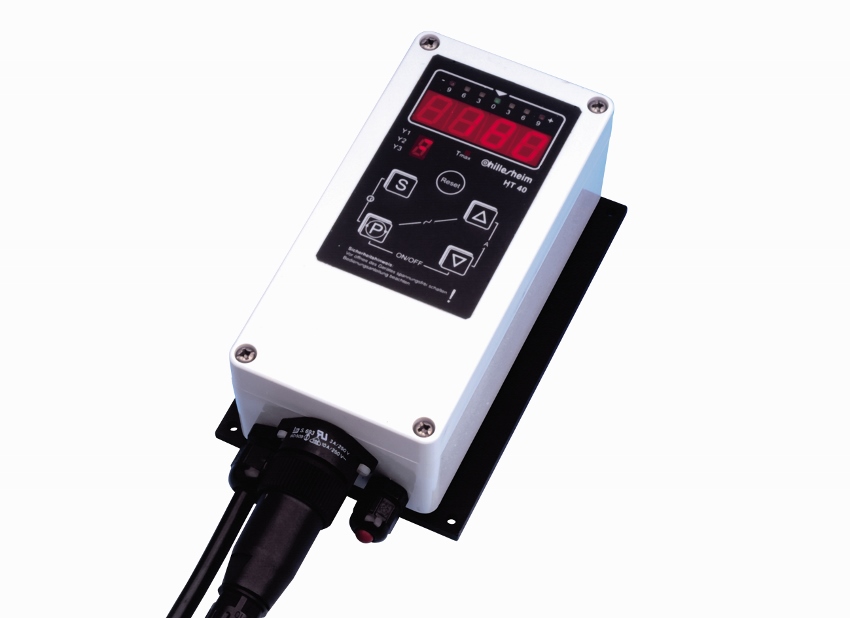

Thanks to its compact design, the HT 43 temperature controller is a universal controller in machine, system and apparatus applications. In the design of this device, particular attention was paid to making its handling simple and comprehensible. The controllers are permanently configured ex works and require no further reprogramming. The contactless switching power is 2300 Watt. All our standard series heating hoses have a 6+PE-pin plug that is perfectly matched to this controller.

Voltage supply 230 Volt AC / 60 Hz, option 115 Volt
Switching power 2300 Watt, 10A
Interference immunity EN 50 082-2
Emitted interference EN 50 081-1

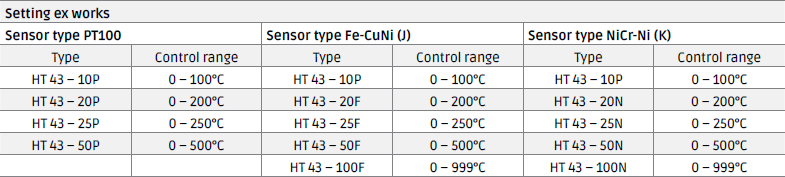

Sensor types Fe-CuNi (J), NiCr-Ni (K) with reference point compensation, sensor breakage protection and sensor polarity control PT100 2-wire DIN/IEC
Tolerance 0.1 % – 0.2 % of full range
Controller outputs elect. switch (controller) (10 A), triac
Alarm outputs alarm output relay 6 A, limit comparator Y3, ±10 K from setpoint, alarm output limit contact set to max. temperature range, Y2
Controller response P-PID
Display actual/target value 4-digit LED display (13 mm)
Deviation display 7 LED ±12°C flashes
Operation foil keypad 4 push buttons
Housing material Makrolon
Housing dimensions 180 x 80 x 60 (L x W x H)
Mounting plate dimen- sions 160 x 100 mm H x W / serves as a heat sink
Fastening 4 bores for M4 screws
Protection type IP65 (EN 60529), protection class I
Load outputs 6+PE-pin socket, mains cable 1.2 m, 1 x for signal outputs, KV screw connectors
Mains plug German Schuko mains plug, 1.2 m long
Option external setpoint input
