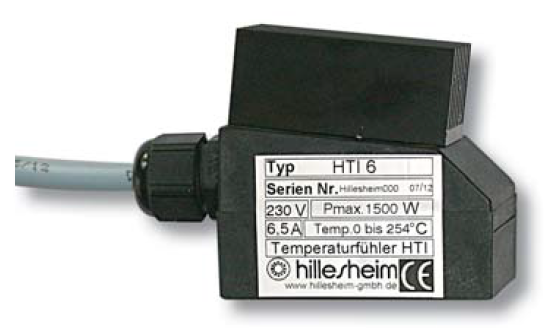

Integral mini-controller
HTI 6 series
The HTI 6 is a temperature controller manufactured with highly- integrated electronic components used in nano Watt technology. Temperature detection is accomplished directly through the heater wire. The temperature setting is made by way of a DIL switch which permits settings in 2°C increments up to a maximum of 254°C. A triac is used in this temperature controller to achieve wear-free switching.
Voltage supply | 230 V AC +6/-10%, / 50...60 Hz |
Switching power | max. 1500 Watt min. load current 1 A |
Controller type | integral / without sensor / special heating conductor |
Display | LED red / green |
Power switch | triac in zero-crossing |
Control range | 0 .... 254°C, +/-5°C |
Setting | setpoint setting 2°C steps with a DIP switch |
Protection type | IP42 / Cast: IP65 (EN 60529) |
Response | two-point controller |
Inputs | cable glands |
Housing material | PA glass-fibre reinforced |
Housing dimensions | 62 x 44 mm (D x W) |
