Controller / limiter combination
Series HT 61 / 62
The temperature controllers HT 61/62 are a further development of the HT40 series. Due to their compact design, simple and clear handling, the temperature controllers HT 61/62 are universal controllers in machine, plant and apparatus engineering. The text-controlled menu allows a simple and intuitive operation of the controller The most important parameters are shown on the LCD display.
In addition, the HT61 / 62 have a limiter function with a permanent shutdown. The contactless switching capacity is 16A.
Voltage supply | 230V AC 50/60Hz (Optional 115V AC) |
Switching power | 3680 W (16 A) |
Sensor types | PT100, PT1000, Fe-CuNi (J), NiCr-Ni (K), Ni120, Sensor with 3-wire system |
Tolerance | 1% +/- 1 Digit |
Controller outputs | |
Controller responce | PID-Controller |
Operating modes | automatical, manual, input delay, program (optional) |
Inputs and Outputs | Alarm output relay 24V/1A Analog output 0-10 V for temperature actual value display Analog input 0-20 mA for external setpoint input (optional) |
Functions | Alarm delay Alarm upper and alarm lower limit limiter function with permanent shutdown remote limiter reset |
Option Package | Program function External setpoint input |
Display | 2-line LCD-Display |
Operation | Membrane keyboard 5 pushbuttons |
Housing dimensions | 160 x 80 x 55 mm (LxBxH) |
Mounting plate dimensions | 160 x 100 mm |
Fastening | 4 bores for M4 screws |
Protection type | IP65 (EN 60529) protection class I |

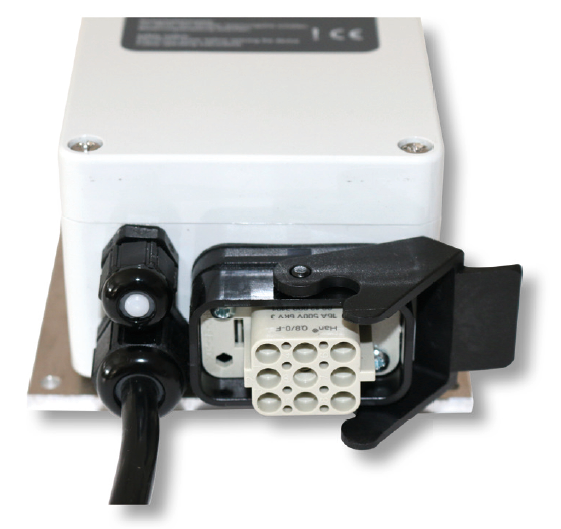

HT 61 load outputs | 1.2 m mains cable with Schuko, 8+PE pole plug (HANQ8), KV- screw connection for signal output |

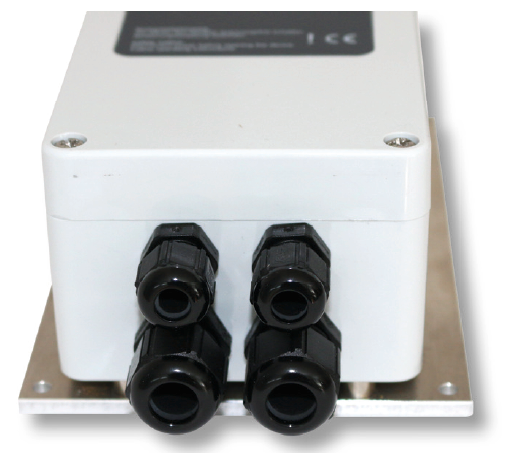

HT 62 load outputs | KV- screw connection for signal output , main cable, consumer, without main cable |
These parameters can be reprogrammed by the customer or preprogrammed according to customer requirements.
