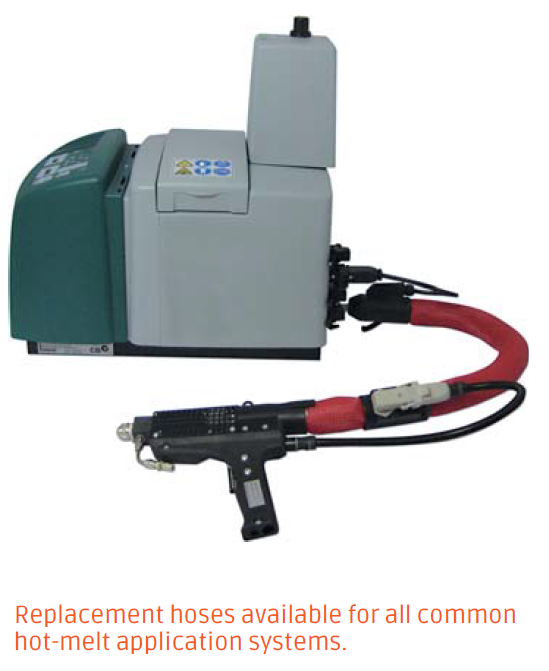

Heating hose for adhesive application systems
H 200 Special series250 °C
Applications: Heat-loss free transport of: adhesives, hot-melt etc.
Deployable pressure hose made of PTFE of DN 4 – 50 mm; pressure load depending on the nominal diameter up to 600 bar.
Operating temperature | 100 °C - 170 °C - 200 °C - 250 °C |
Rated voltage | 230 V AC/DC (other voltages up to 500 V) |
Rated power | Watt/metre depending on selection |
Pressure hose type | see Pressure hoses |
Connection fitting | steel / stainless steel, see fittings |
Heating | heating conductor, structure according to DIN, moisture-proof with protective braiding |
Thermal insulation | heat stabilized, closed-pore silicone foam up to 250°C elastomer foam up to 170°C |
Outer protective braiding | polyamide, black, options possible |
Hose end caps | PA hard cap or elastomer cap |
Temperature sensor | Fe-CuNi type J, NiCr-Ni type K, PT100 Ni 120 |
Connecting cable | dependent on the installation |
Plug connection | special plug dependent on the installation |
Control lines | number according to customer requirements |
Production lengths | from 0.3 to 50 m depending on DIN |
Protection type | up to IP54 (EN 60529), protection class I |
Tolerance | ±10°C |
Extended usages according to customer requirements with special equipment possible. (Manual or robotic application, diffusion-sealed version).
