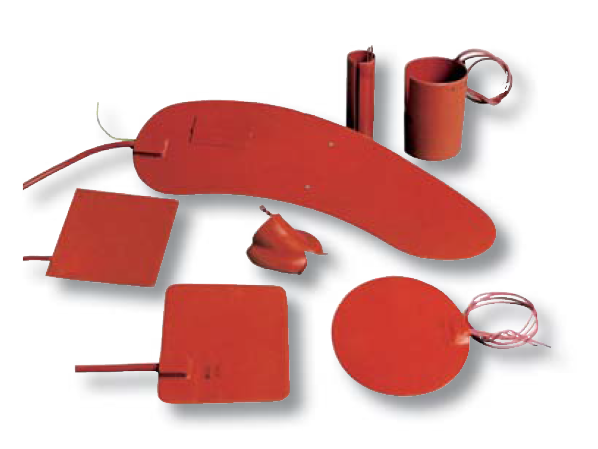

Flexible silicone heating mats
Type HSI200 °C
Applications Heating of complicated surfaces, parts and moulds.
The silicone heating elements are characterised by their very uniform heat distribution. They are very flexible and are available in different designs. As mats or shaped parts, they are used as an economical solution in countless applications.
The HSI silicone heating mats are always manufactured specifically for the respective applications.
Operating temperature | max. 200 °C |
Rated voltage | 230 V AC/DC |
Rated power | 6500 W/m² (standard) and more |
Minimum ambient temperature | -60 °C |
Material | silicone, silicone-coated textile glass fabric |
Dimensions | max. 3.0 x 1.2 m |
Heater element thickness | approx. 3 mm without mains cable |
Fastening options | adhesives, binding, hooks, eyes, Velcro, self-adhesive coating |
Temperature sensor | vulcanised or in sensor pocket PT100, FeCuNi |
Over-temperature protection | with 2nd PT100 or thermoswitch (option) |
Connection cable | various connection technologies possible |
Plug connection | according to specification |
Protection type | IP4x (EN 60529), protection class II or III |
Temperature control using our controllers, in chapter Control technology.
