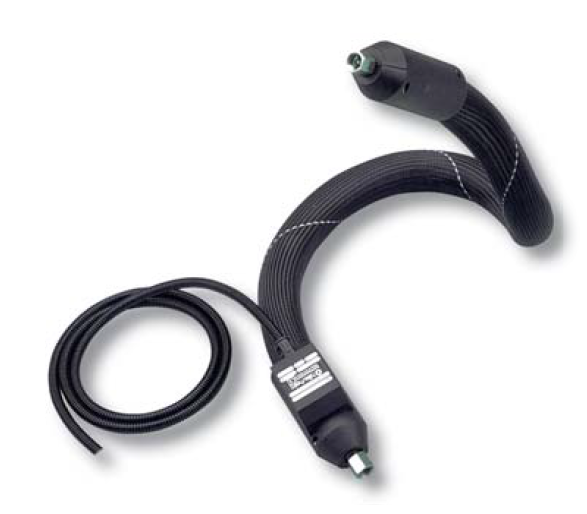

Industrial heating hose with constant power
HX6 series200 °C
The industrial heating hose with HX6 series heating conductors is designed for use in Ex areas. The heating hoses are above all characterised by their compact construction with connection configuration. The HX series heating hoses are tested to ATEX standards and with an EC type examination certificate they are certified for the entire heating hose.
The specially structured HX6 series heating hoses can be used in temperature classes T1 ... T3 depending on the temperature control and are suitable for use in zones 1/2 (gas) and zones 21/22 (dust). Their operation in zones 0 and 20 is not permissible.
The HX6 series industrial heating hoses are equipped with two EX-PT100 sensors. PT100 Exi intrinsically safe are also optional.
Applications: Heat-loss free transport of: oil, grease, resin, tar, paint, water, carbon dioxide, plastic, moulding compounds etc. in Ex areas.
Temperature classes | T3=200°C |
Ex areas | Zone 1/2 (gas) Zone 21/22 (dust) |
Marking | (Ex) II2G Ex eb IIC T1... T6 (Ex) II2D Ex tb IIIC T85°C... T450°C CE 2004 |
EC type examination certificate | EPS 11 ATEX 1 341 X |
Directive | 2014/34/EU, EN 60079-0, EN 60079-7, EN 60079-18 |
Operating temperature | 200 °C |
Rated voltage | 230 V AC |
Power rating | depending on the design of the nominal diameter |
Connecting cable | 1.0 m |
Pressure hose | see Industrial pressure hoses |
Connector fittings | steel / stainless steel, see Fittings |
Thermal insulation | thermally stabilised, close-pore foam or thermal fleece |
Outer protection | antistatic, see Outer protection hoses |
Hose end caps | PA hard cap or elastomer cap |
The temperature must be monitored with controllers dependent upon
