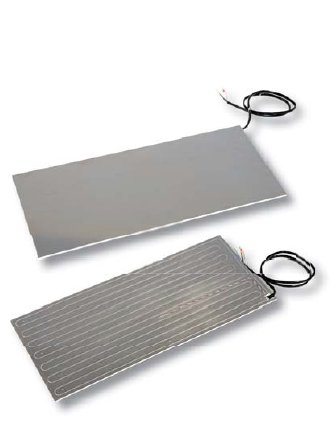

Aluminium heating plate with self-limiting power

HAPX series80 °C

Applications: Heating of parts and moulds, wood and paper industry, automobile industry, mould-making, plastics industry, bookbinding.

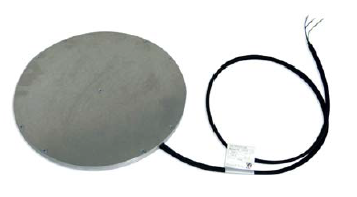

The HAPX aluminium heating plates cover a temperature range of up to 80°C and can handle extreme pressure loads and are impact and vibration resistant. Their shapes can be individually fabricated – whether round, oval or L-shaped. Special designs with cut-outs, bore holes and bolt threads are possible.

Even combinations with liquid and air channels for cooling can be implemented.

Holding temperature	approx. 80 °C to +10 °C
Rated voltage	230 VAC
Power rating	depending on the configuration
Material	Aluminium (AlMg3 EN-AW-5754) (AIMg4.5 EN 573-3)
Dimensions / max	1450 x 2400 mm
Heating plate thickness	20 mm >
Weight	Thickness: 20 mm approx. 52 kg/m²
Surface	rolled aluminium, finely milled etc.
Pressure rating	80 N/mm²
Expansion	0.24 mm 1°K / over 1000 mm length
Connecting cable	1.5 m long
Protection type	IP65 (EN 60529), protection class I
Temperature regulation	via our temperature controllers on request
Temperature classes	depending on the version T1 ... T6
Ex areas	Zone 1/2 (gas) Zone 21/22 (dust)
Certification	Only the individual components are certified
Directive	2014/34/EU, EN 60079-0, EN 60079-7
Optional cooling plate	on request
Optional temperature sensor	Ex-PT100 or PT100 Ex i intrinsically safe

We manufacture special designs of our Ex heating plates to customer requirements, for example:

Aluminium heating plates for heating electronic components, to reduce soldering times
Aluminium heating plates to heat CDs and solar cells during manufacture and final inspection
Aluminium heating plates for pressing in the wood and paper industry for laminates and hot adhesives
Aluminium heating plates for moulding PU foam and GRP prefabricated components The maximum final temperature must be monitored with controllers.
