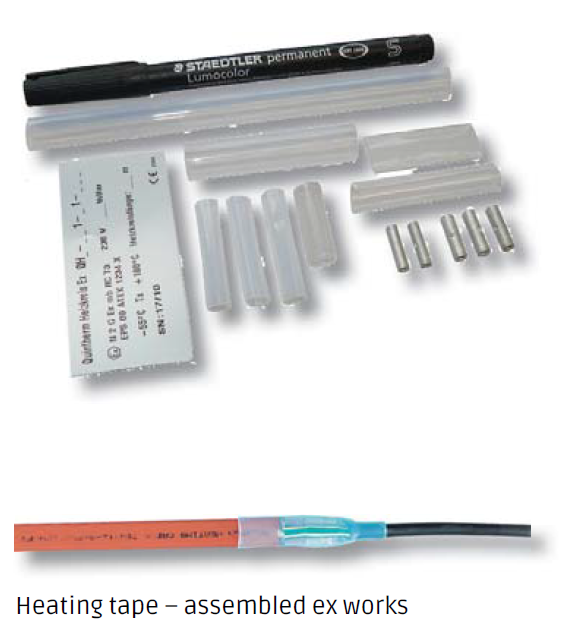

Connection/termination set in shrink technology for use in explosion hazard areas
Type HBR-IAL3Ex-HQSS180 °C
The system includes a very flexible and space-saving connection technology for use in explosion hazard areas. The use of a special temperature stable FEP connecting cable offers various applications, also at very high temperatures. The set includes the connection and the termination
- Compact dimensions
- Continuous temperature stability up to 180°C
- Flexible in use
- Used for ILH and ILS heating conductors
Configuration ex works | Type HBR-IAL3Ex-HQSS-E |
Self-configuration set | Type HBR-IAL3Ex-HQSS |
Temperature class | T3 |
For following heating tapes | HBR-ILH, HBR-ILS |
Length of connection piece | 140 mm |
Length of termination | 55 mm |
Marking | (Ex) II 2G Ex mb IIC T3 |
Approval | EPS 09 ATEX 1234x / CE 2004 |
Connecting cable Ex (option) by the metre 200°C | |
HBR-ALF-25 | FEP – connecting cable 3x2.5 mm² |
Further information Please observe installation instructions!
