Connection/termination set in shrink technology for use in explosion hazard areas
Type HBR-IAL3Ex-MQSS85 °C
The system includes a very flexible and space-saving connection technology for use in explosion hazard areas.
A heating conductor is connected with a special connecting cable via an insulated joint connector and is subsequently sealed with a heat shrink hose. The very compact dimensions also enable installation under confined conditions.
The installation instructions illustrated allow sources of error to be virtually excluded. The set includes the connection and the termination.
- Compact dimensions
- Temperature stability up to +85°C
- Quick and easy to assemble
- For ILLw... Use of a heating conductor possible

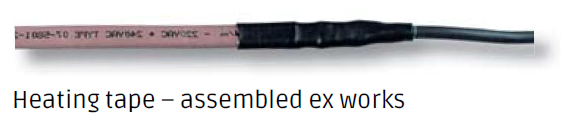

Configuration ex works | Type HBR-IAL3Ex-MQSS-E |
Self-configuration set | Type HBR-IAL3Ex-MQSS |
Temperature class | T6 |
For following heating tapes | HBR-ILLw |
Connecting cable cross section | 1.5 mm² |
Connecting cable length | 140 mm |
Length of termination | 58 mm |
Marking | (Ex) II 2G Ex mb IIC T4/T5/T6 |
Connecting cable Ex (option) by the metre 135°C | |
HBR-ALR-15 | Radox connecting cable 3 x 1.5mm² |
Further information: Please observe installation instructions!
